Surges are transient phenomena involving built up of potential and flow of currents of magnitudes server times higher than the normal working currents and voltages resulting in partial or complete damage of equipment or reduction in life of components / equipment




TEAMLINK: VAJRA ensures that surges are handled effectively and the down time due to surges is minimised to near zero


Results of Surges :
   Replacement cost of the circuit of the equipment
   Replacement cost of the circuit of the equipment


A study conducted by the IEC in several countries revealed that the loss due to surges is 27.4%


Protects 2-wire data communication devices that connect to telephone lines (such as modems and line drivers) against surges and transients and can protect up to four devices


Improves link up time and reduces service costs by protecting telephone line data communication devices (e.g., modems and line drivers) against surges and transients within specified limits


Fast response to surges allows use with high speed data communication equipment




TeamLink VAJRA is NABL accredited LAB tested for surge protection to adhere to ITU-T K.20/K.21, IEC 61000-4-5, IEC 62368-1 standards


Product is designed & manufactured by DSL line modem OEM of near 30 years' experience who understand the line condition where his equipment is connected


       Product Features


Technical Specifications

Designed to allow connected equipment to comply with international standards such as

ITU-T K.20/K.21

IEC 61000-4-5

TIA-968-A (formerly FCC part 68)

GR-1089

Ul60950 (formerly Ul1950) Recovers automatically from over-voltage surges

Metal Box: compact Size

Product suitable for Telecom equipment such as Modems – Line Drivers

Each TeamLink Vajra Support four Telecom Products protection

Earth Pin provided

The unit provides protection against damage caused by power cross and induced power surges as defined by ITU, Telcordia Gr1089,and IEC 62368-1.

Resettable Over current Protection, Fast time-to-trip

Product connects on the 2 wire DSL line and protect the telecom unit from DSL line surges

Provision of wall mounting with key holes at either end of the box for easy fixing

Product as terminal block on the DSL line input for easy termination and identification

Product as Wago connector press fit on the Modem side for easy installation & identification

Product is rugged metal box with clear marking for each input & output port

Each individual port is isolated from each other to protect from surges

Internal box has the necessary arrangements to protect the telecom devices connected to it from surges

Components used are solvent resistance as per MIL Standard 202

Components used are moisture resistance level 2, J-STD-020

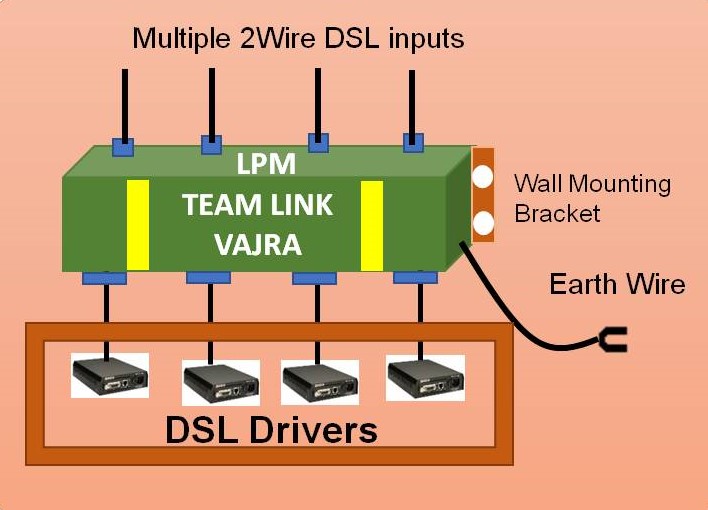

Applicaton Diagramme


Metal Box: compact Size

Suitable for Telecom equipment such as Modems – Line Drivers

Each TeamLink Vajra Support 4 Telecom Products protection

Earth Pin provided

Connects on the 2 wire DSL line

protect the telecom unit from DSL line surges

Each individual port is isolated each other to protect surges

Resettable Over current Protection, Fast time-to-trip

Components are solvent & moisture resistance
