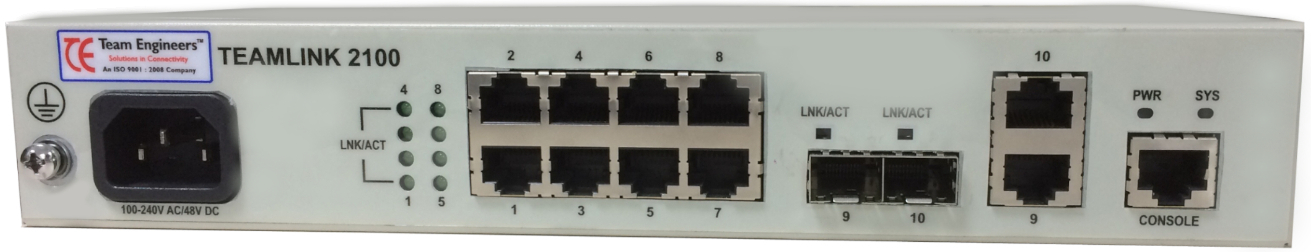

The TEAMLINK 2100 series carrier-grade MAN Ethernet access switch is a network-manageable Layer 2 Ethernet Optical switch, it can implement all-line speed switching. It adopts a standard chassis and various interfaces with carrier-grade stability and reliability, with four/eight 10/100BASE-T Ethernet electrical interfaces. It provides 2/4 GE COMBO(10/100/1000 Base-T or 100/1000Base-X) interfaces. In addition, it provides rich QoS policies, A CL, and protection switching mechanisms.




The TEAMLINK 2100 , oriented for carrier-grade corridor access, is suitable for Indian Railways Surveillance, other Similar applications, It can also aggregate services from the corridor of a broadband residential area and services from a small network.


       Product Features


Key Features

Maximum frame length of 9 Kbytes, supporting jumbo frame


16K MAC addresses


services


4094 VLANs, supporting QinQ and VLAN mapping


Loop detection


Broadcast storm control


Port mirroring


VLAN as per IEEE 802.1Q


Flow control IEEE 802.3x


LLDP as per 802.1AB


Link aggregation as per IEEE 802.3ad


DHCP client and server


Spanning tree protocol as per IEEE 802.1D


Rapid spanning tree as per IEEE 802.1w


MSTP as per IEEE 802.1s


BPDU guard Spanning tree root guard


IGMP v1, v2 and v3 snooping


TP V.3 or SNTP for retrieving date and time


RoHS compliant


Optical Safety


SFP are Class I laser product


The PCB are Class 2PCB


Protection against dust for Optical port


MTBF 14.5 Y ears


Trap/alarm configuration through SNMP


Technical Specifications

Ethernet Interfaces:

Type and Number : IEEE 10/100 BASE T, Fou

Connector type : RJ 45

Media Converter without PoE

Auto sensing of speed on 10/100 ports

Auto negotiation on Ethernet interfaces for speed and mode of communication (full duplex or half duplex)

Auto sensing of MDI/MDIX for UTP copper ports

Network Interfaces:

Type and Number : IEEE 10/100 BASE T, Fou

Combo port UTP IEEE 10/100/1000BASE-T RJ45 port and support for SFP for optical port,Two combo ports. Alternatively two SFP and two gigabit RJ45 ports provided

Auto sensing speed on RJ45 10/100/1000 ports

Auto sensing of MDI/MDIX for UTP copper ports

These two ports provide redundancy. In case of port failure or optical fiber problem, the traffic shall be diverted to the other port

Support Gigabit SFP



Other Technical Specifications

IEEE 802.3ah OAM
Standard OAM discovery, link monitoring, remote loopback, fault indication, and performance statistics ;
MIB variable acquisition;
Event processing
OAM active mode and passive mode
Extended OAM protocols


DHCP Client, DHCP Relay, DHCP Snooping, DHCP Option82


Traffic classification (IP, DSCP, and CoS) and traffic policy (rate limiting, redirection, and remarking)
Interface-based and VLAN-based rate limiting;
Port based user authentication IEEE 802.1x;
Unicast MAC filtering
Four dispatching queues per port , mapping the 8 priority queues in IEEE 802.1p
WRR
Rate limiting per port (Ingress and Egress)
Per port broadcast, multicast and unicast storm control
MAC based ACL
Broad cast, Multicast and unicast storm control

SNMPv1/ v2cto enable management by third party SNMP manager
RMON (1,2,3,9);
CLI based management via console port and T elnet;
WEB management
SSH
Trace route and Ping test
FTP and T FTP
Different levels of access
Link monitoring
Monitoring of power supply failure


Power
Alarm
Connection data forwarding indication
Ethernet link
10/100 Mbps speed indication


IGMP Snooping, IGMP MVR, IGMP filtering, IGMP Proxy


Interface protection
LACP;
Ethernet ring;
STP, RSTP, and MSTP
Layer 2 and Layer 3 SLA


Shall complyEN60590 or IEC 60950 or UL 60950 or CSA 60950 or equivalent IS 13252


Emission Compliance
EN 55022 class A /B or CISPR22 class A/B or CE class A/B or FCC class A/B


Immunity Compliance :
EN6100-4-3 or IEC61000-4-3
EN6100-4-4 or IEC61000-4-4
EN6100-4-5 or IEC61000-4-5
EN6100-3-3 or IEC61000-3-3

1000BASE-LX10 :
Nominal optical wavelength: 1310 nm
Optical power T x Max: -3dBm
Optical power T x Min: -9dBm to -11 dBm
Rx saturation: -3dBm
Rx sensitivity: -19.5 dBm
Compliant to MSA, IEEE 802.3z

1000BASE-EX:
Nominal optical wavelength: 1310 nm
Difference between T x Min optical power and Rx Sensitivity 21dB
Compliant to MSA, IEEE 802.3z

1000BASE-BX10-10U:
Nominal optical wavelength: T x-1310 nm, Rx- 1490nm
Optical power T x Max: -3dBm
Optical power T x Min: -9dBm
Rx saturation: -3dBm
Rx sensitivity: -19 dBm
Compliant to IEEE 802.3-2005/IEEE 802.3ah

1000BASE-BX10-10D :
Nominal optical wavelength: T x-1490 nm, Rx- 1310 nm
Nominal optical wavelength: T x-1490 nm, Rx- 1310 nm
Optical power T x Min: -9dBm
Rx saturation: -3dBm
Rx sensitivity: -19 dBm
Compliant to IEEE 802.3-2005/IEEE 802.3ah

Operating Voltage :
100 V to 240 V AC 50/60 Hz Operation and -48 V DC nominal on range -36 V to - 60 V DC or 110 V DC
Single Power Supply Supports both the A C and DC voltages
Reverse polarity protection for DC operation
Over voltage protection for both AC and DC operation

Testing as BSNL QM-333 or IEC 60068 or IS 9000 or equivalent ISO or MIL STD -810 T o show compliance to following parameters
Operating Temperature : 0 ~ 50°C;
Humidity : 0 ~ 50°C: 10% ~90% non-condensing
Storage Temperature: - 20 ~ 70°C


1000BASE-LX10 : Requires a pair of mono-monde fibers. Data rate 1000Mbps, A pproximate range 10Km

1000BASE-EX : Requires a pair of mono-monde fibers. Data rate 1000Mbps, A pproximate range 40Km

1000BASE-BX-10U : Requires only one mono-monde fibers for both T rans and Receive. T he device at other end must have 1000BASE-BX-10D type of SFP. Data rate 1000Mbps, Approximate range 10Km

1000BASE-BX-10D : Requires only one mono-monde fibers for both T rans and Receive. T he device at other end must have 1000BASE-BX-10U type of SFP. Data rate 1000Mbps, Approximate range 10Km
